Turnovers

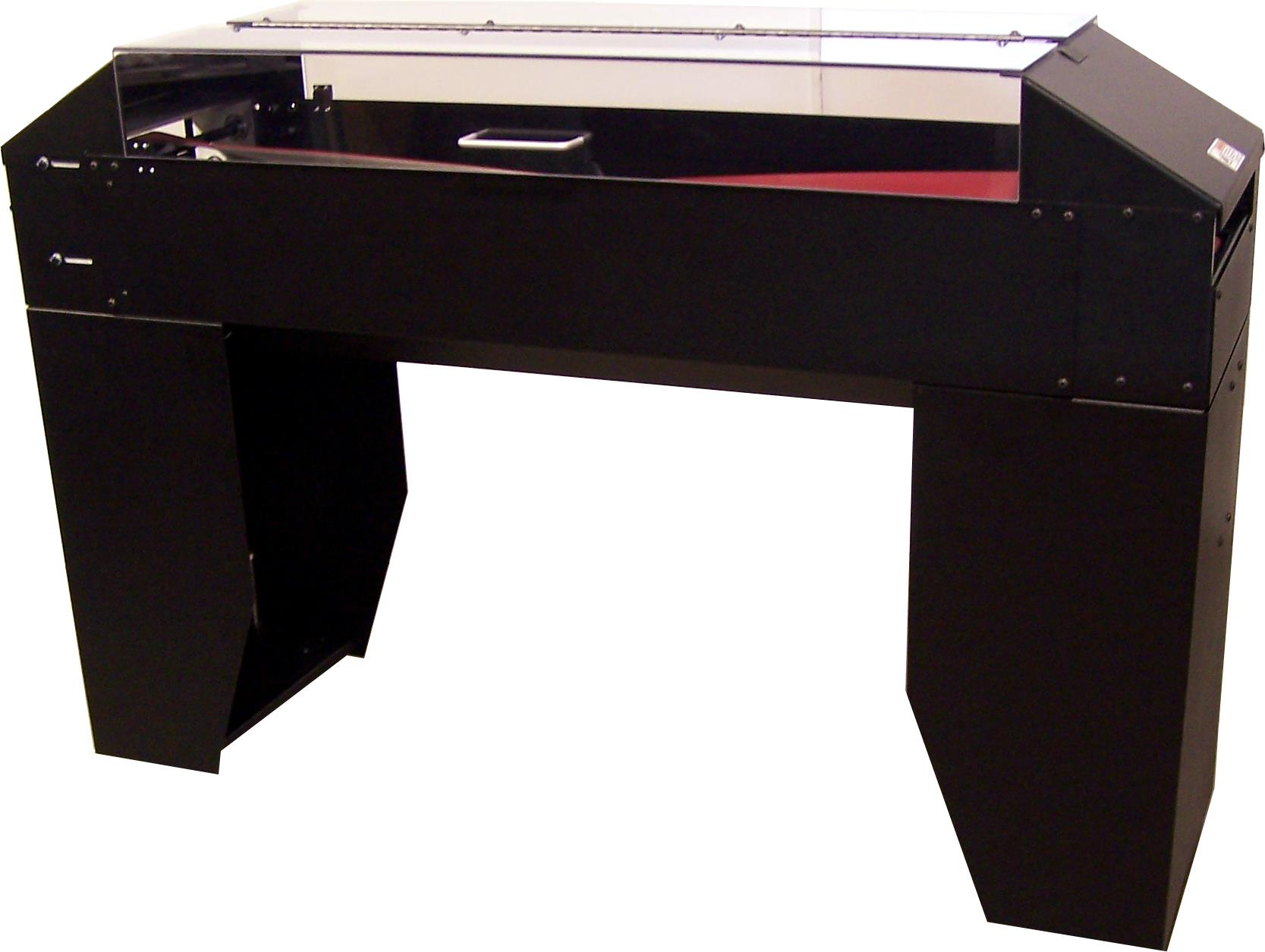

575ITO
Don’t take your product off-line just to run the other side. The 575ITO offers a simple solution to dual sided applications. This machine easily flips medium to smaller piece sizes without any set-up - just run the product down the middle of the belts. Robust construction and easy belt change will minimize maintenance downtime.

200RT
The 200RT offers an innovative way to turnover large sheets and delivers them in the same orientation at a right angle. This allows a variety of processes to be added in-line, dramatically increasing productivity. Set-up couldn’t be simpler - all standard sheet sizes are to be center justified over the belts, so no adjustment is necessary. The 200RT utilizes the same rigid construction and easy maintenance that Walco Systems has built its reputation on.
Features
Quick and Easy Setup
Non-Proprietary Components
Variable Speed Transport
Uncompromising Drivetrain
Large Diameter Steel Shafts
Steel Drive Pulleys
Steel Rollers
Sealed Shaft Locking Collar Bearings

Specifications

575ITO
Material Size: Min. 4"L, Max. 11"W
Material Thickness: Up to 3/8"
Physical: 57.5"L x 15.75"W x 31-33"H
(Operating), 40-42"H (Physical)
Electrical: 110VAC Single Phase, 10Amps



200RT
Material Size: Min. 6"L, 8.5-20"W
Material Thickness: 20# to 100# Sheets
Physical: 35.5"L x 32"W x 33-35"H
(infeed), 37-39"H (outfeed), 39-41"H (physical)
Electrical: 110VAC Single Phase, 10Amps
Solutions Provider for the Printing Industry, Mailing Industry and Packaging Industry
