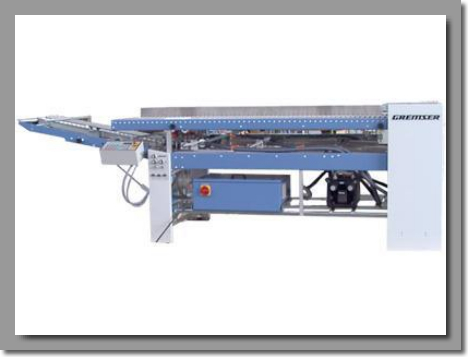

   High performance single sheet feeder up to 30,000 sheets per hour
    No interrupt of operation, while reloading the feeder (Non Stop)
    Material (paper, Film or similar) from 60g/m² up to 200g/m²
    Range of formats from DIN A5 up to 140x200cm

Standard Equipment

    In-feed height EH=1000mm
    Loading table with centre belt and stainless steel rollers
    Turn over drum ∅300mm with support belts and edge guide
    Wide lower forwarding belt with spring loaded support flap
    Side blower to fan the pile (BG1 to 3 = 2, BG4 and BG5 = 3)
    Side channel compressor for side
    Vacuum wheel (wide model with BG2 and higher)
    Compressor KLT40 for pressure air and vacuum
    Separation blower from the front
    Register table SAT140 or 190 (BG4 and BG5)
    Double sheet detector with detection lever
    Line 230/400V 50Hz, L1, L2, L3, N, PE

Product Options

    Integrated drive via inverter
    Mobile undercarriage with height adjustment (EH = 950 ÷ 1150mm)
    Height adjustment additional 50mm, 80mm, 100mm, 150mm, 250mm
    No register table but transfer shaft
    No register table but transfer belt conveyor
    Ultra sonic double sheet detection DSC-US
    Counter VZG
    Remote control EBP
    Line 220±10% 50/60Hz, L, L, L, PE
