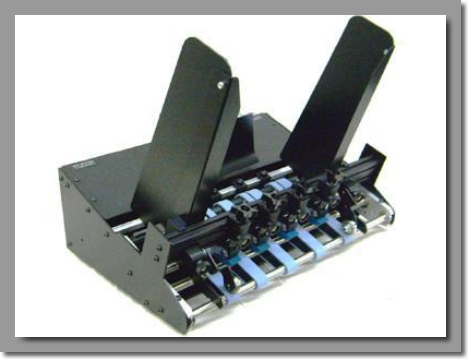

Straight Shooter C-20 Wide Format High Speed Continuous Feeder

The C-20 offers more feeder for your money than the competition. Now you can easily handle the wide stuff with a compact, cost-effective feeder that is as versatile as it is easy to use.

Until now, wide format friction feeders were too costly, too cumbersome, and too complicated. Straight Shooter changes all that with the C-20 wide format feeder.

Combining simple, clean design with proven features, the C-20 makes it easy to run those large documents, while still handling the small stuff.

With the optional card kit, the C-20 can handle small media down to 2″ wide without compromising the ability to feed large pieces.

The C-20 combines heavy duty design with lightweight versatility in the compact package that is easy to move from one application in your plant to another.

Now you don’t have to buy multiple feeders to handle various jobs!

The C-20 comes with four independently adjustable separators and more feed belts than the competition for unlimited setup options, at a price they can’t touch.
Product Options

    Adjustable height floor stand
    Table stand
    Card option for small media
    Single shot and batch counting

Media Handling

    Width: 3″ minimum up to 20″ maximum
    Length: 2″ minimum up to 17″ maximum
    Thickness: Single sheet up to 3/8″ thick
    Speeds: Up to 40,000 postcards per hour


120 vac, 5 amp standard (240 optional)
Available interlocks

    Dry contact
    12 vdc
    24 vdc
    24 vac
    Others upon request


23″ wide x 17″ long

   Buckle Separation™ for versatility
    Complete paper guides for straight feeding
    Repositionable feed belts
    Independently adjustable separators
    Simple 5 minute belt changes
    Quick, tool-less setup
