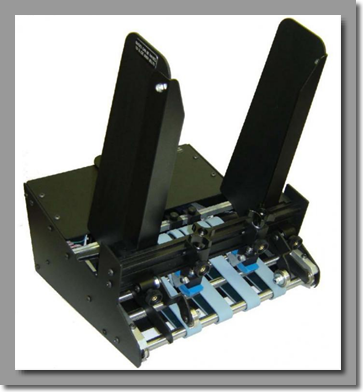

Straight Shooter C-12 High Speed Continuous Feeder

Product Options

    Adjustable height floor stand
    Table stand
    Card option for small media
    Single shot and batch models
    C-20 for wide documents

Media Handling

    Width: 3″ minimum up to 12″ maximum
    Length: 2″ minimum up to 17″ maximum
    Thickness: Single sheet up to 3/8″ thick
    Speeds: Up to 40,000 postcards per hour

Power
120 vac, 5 amp standard (240 optional)
Available interlocks

    Dry contact
    12 vdc
    24 vdc
    24 vac
    Others upon request

Dimensions 15′ wide x 17″ long

Weight  35lbs.
Features

    Solid, heavy-duty paper guides that extend all the way through the feeder
    Repositionable feed belts - lets you customize the feeder for every piece
    Independently adjustable separators - as many as you like
    All belts that can be replaced in minutes
    Heavy duty shafts and bearings for long life
    Four high friction feed belts and three traction belts for additional friction
    Use as many separators and belts as each job requires
    Completely tool-less setup
    Clean, uncluttered design - easy to set up, easy to move, easy to service
Solutions Provider for the Printing Industry, Mailing Industry and Packaging Industry
