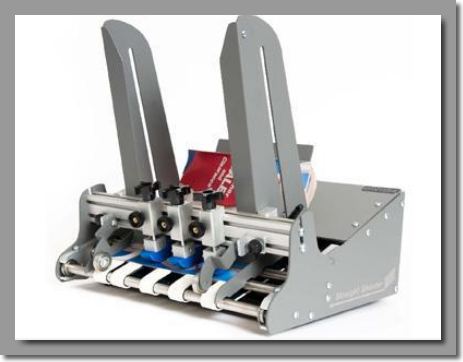

From Straight Shooter, the company that brought real innovation to friction feeding comes the all new R-14 high speed friction feeder! The versatile R-14 comes with all the features our feeders are known for, including:

    Buckle separation™
    Repositionable feed belts
    Straight feeding
    5 minute belt changes

Now you get even more with the R-14! More belts, more separators, 14″ wide capacity, and Straight Shooter’s exclusive rear belt guide positioners. All of this comes in a clean, easy to use package at an unbeatable price!

Straight Shooter feeders are designed to take the hassle out of feeding. In today's competitive marketplace, you need a feeder that you can count on to run whatever comes your way. The R-14 delivers!

Based on Straight Shooter’s popular SS12 and C-12 models the R-14 offers simple setup, versatility, and reliability in a wider format. The R-14 easily handles up to 14″ wide stock at speeds up to 40,000 pieces per hour.
Media Handling

    Width: 3″ minimum up to 14″ maximum
    Length: 2″ minimum up to 17″ maximum
    Thickness: Single sheet up to 3/8″ thick
    Speeds: Up to 40,000 postcards per hour


120 vac, 5 amp standard (240 optional)
Available interlocks

    Dry contact
    12 vdc
    24 vdc
    24 vac
    Others upon request


    17″ wide x 17″ long


    40 lbs.
