Configuration
Unit can be ordered only as a table-top system.
Tabbing Head is capable of 1 ½” tab/label width.
Tabbing Head utilizes a Brushed DC Servo Gearmotor for indexing.
Standard System can wrap tabs on only one side only (Front Wrap is standard, Rear Wrap available upon request)
Standard System has a Left to Right product direction of travel. (Right to Left is available upon request)
Dual Head Ready systems are available for electrically linking the control of two machines. (Not Standard)
Dual Side Wrapping machines are available as specials.
Product Name

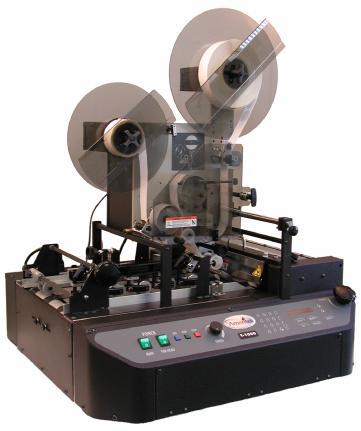

T1000
Product
Minimum Product Size: 3 ½” x 5” (USPS minimum) Maximum Product Size: 12” x 14” long
Minimum Thickness: 0.007” (USPS minimum) Maximum Thickness: 3/8”
Tabs/Labels
General Backer is 1/16”-1/4” larger than tab/label
Typical gap between tabs/labels is 1/8” to 1/16”
Minimum Width ¾” backer width
Maximum Width 1 ¾” backer width
Minimum Pitch ¾”
Maximum Pitch 4”
Types Machine grade paper, clear, or translucent.
NOTE: Clear and translucent tabs require an “engineered backer” with printed
registration marks for indexing. Wide or narrow registration marks can be used.
Narrow registration marks are preferred.
Roll Size Up to 13 ½” diameter mounted on a 3” core.
Approximately 20,000 1” tabs
Speeds
Transport Belt Speed 0 to 300 Ft./min
Tabbing Head speed 0 to 300 Ft./min
Production Rate Up to 20,000 pieces per hour (1” single tab on 8 ½” length product)
Up to 15,000 pieces per hour (1” double tabs on 8 ½” length product)
Up to 12,000 pieces per hour (1” triple tabs on 8 ½” length product)
** Booklet Mode** Up to 18,000 pieces per hour (1-1/2” single tab on 5” height product)
** Booklet Mode** Up to 12,000 pieces per hour (1-1/2” double tabs on 5” height product)
Accuracy
Tab Placement +/- 1/8” repeatability
Automatic Placement Complies with USPS specifications for tab placement and application.
Safety
Guards and interlocks Product is guarded so that accidental personal injury cannot occur while operating as
prescribed by The User’s Guide provided with system.
Regulatory
EMC: FCC Part 15 Class A ESD: IEC 61000-4-2 (+/- 8KV air, +/- 4 KV direct discharge)
Physical Size
System Length: 34 ½” System Width: 28” System Height: 38”
Tabletop Height 8 ½” Weight: 160lbs
Electrical Requirements Voltage/ Current: 115 VAC @ 5 amps
