Walco Vacuum  Transports

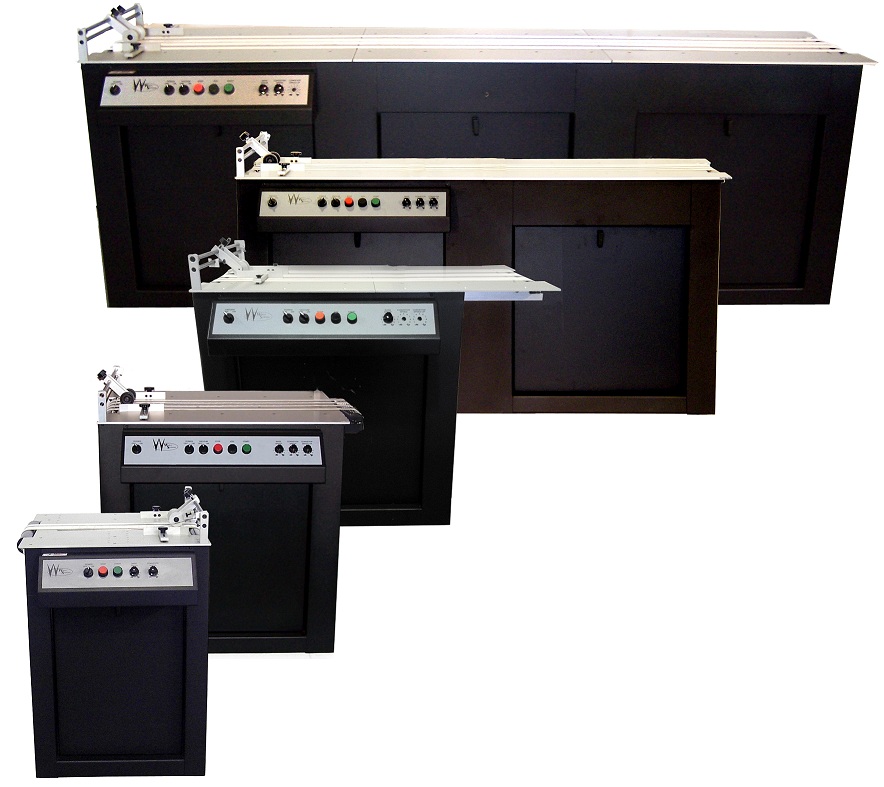

Walco Systems manufactures vacuum transport bases in 24", 35",42", 65.5", and 96" lengths. The VT series vacuum belt transport systems are engineered for accurate product control and registration. Quality components and durability ensure customer satisfaction even for the most demanding applications.
240VT
Transport Direction: Left to Right or Right to Left
Material Size: Min. 2"L x 3"W - Max 20" wide
Material Thickness: Up To 1/2" Standard
Physical: 24"L x 23.5"W x 33-36" H
Electrical: 110 VAC Single Phase 10 Amp Circuit
350VT
Transport Direction: Left to Right or Right to Left
Material Size: Min. 2"L x 3"W - Max 20" wide
Material Thickness: Up To 1/2" Standard
Physical: 35"L x 23.5"W x 33-36" H
Electrical: 110 VAC Single Phase 10 Amp Circuit
655VT
Transport Direction: Left to Right or Right to Left
Material Size: Min. 2"L x 3"W - Max 20" wide
Material Thickness: Up To 1/2" Standard
Physical: 65.5"L x 23.5"W x 33-36" H
Electrical: 110 VAC Single Phase 10 Amp Circuit

Features
Variable Speed Transport
Adjustable Belts
Independent Vacuum Control
Adjustable Infeed Product Guides
Feeder Interlock Switch
Vacuum Belts
Integrated VSC Converyor Controls
12" Wide Transport Rollers
Full Frame Construction
Adjustable Infeed Rollers
Quality Components

•Heavy Duty Gear Drive Motors

•Commercial Regenerative Blower

•Large Diameter Shafts

•Sealed Shaft Locking Collar Bearings
Options

Speed Following
Allows Walco System feeders & transports to maintain matching belt speeds, using one speed control.

Monitor/Keyboard
The spacious articulating platform is large enough to accommodate a full size monitor & keyboard.
Solutions Provider for the Printing Industry, Mailing Industry and Packaging Industry
