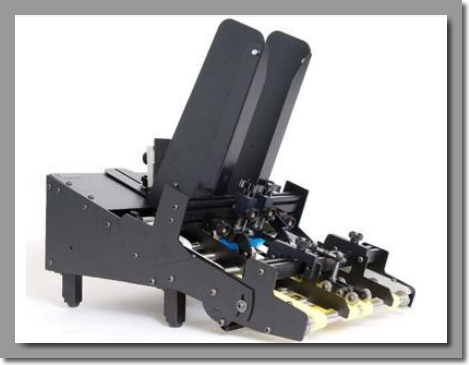

Straight Shooter D-12 and D-20 line of friction feeders are the solution to your single shot AND continuous feed applications.

Utilizing proven Straight Shooter innovations like Buckle Separation™ and repositionable feed belts and separators, the D-12 now offers a simple, cost effective solution for packaging applications.

The D-12’s unique adjustable angle acceleration table allows you to deliver documents to your production machinery at the optimum angle, no matter what the application! This enhances productivity while minimizing waste.

We’ll give it to you straight… literally!

Straight Shooter’s complete paper guides and repositionable belt ideas are carried through in the D-12ís acceleration table, giving you unmatched versatility and control.
Versatility

Simple angle adjustment on the accelaration table allows you to customize the D-12 for any application.

Set the table flat for ink jetting or tabbing and downward for collators and bindery equipment.

Product Features

    Complete paper guides for straight delivery of your documents
    Repositionable belts ñlet you put the friction where YOU want it!
    Buckle separationôfor smoother separation without the jams!
    Multiple, independently adjustable separators for greater versatility
    Quick, easy belt changes reduce downtime and save you money!
    Acceleration table creates gaps between documents for accurate photo eye detection AND delivers documents smoother and faster!

Media Handling

    Width: 3″ minimum up to 14″ maximum (20″ on D-20)
    Length: 2″ minimum up to 17″ maximum
    Thickness: Single sheet up to 3/8″ thick
    Speeds: Up to 40,000 postcards per hour

Power

120 vac, 5 amp standard (240 optional)
Available interlocks

    Dry contact
    12 vdc
    24 vdc
    24 vac
    Others upon request

Dimensions

    17″ wide x 26″ long

Weight

    55 lbs
