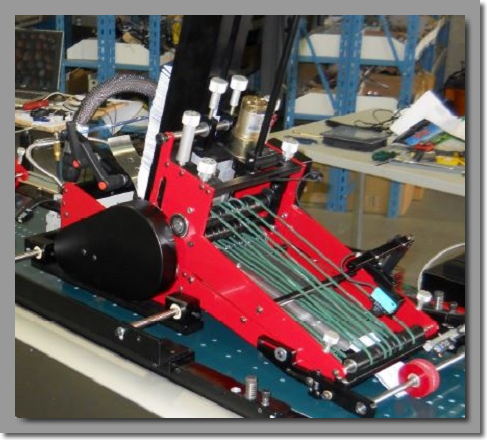

HSF 8SV Tip On/Affixing Friction Feeder
A high speed servo friction feeder manufactured for the high speed affixing of small items such as gift cards, leaflets, pharmaceutical instructions, magnets and much more.
The HSF 8 SV can be integrated to many automated systems.
Some of these include:
• Book Binding Lines
• Folding machines
• Vacuum conveyors
Features
• Low profile for accurate placement
• Side guides for straight placement
• All anodized aluminum framework
• Patent pending gear-driven singulating mechanism
• Servo motor and drive
• All permanently lubricated ball bearings
• FDA design features are standard
• Simple adjustments minimize setup and change over time
• Rugged durability for continuous use and long life
Applications:
• Gift Cards
• Credit Cards
• Coupons
• Leaflets
• Magnets
• CD’s/DVD’s
• Slip Sheets
• Pharmaceutical Inserts
• Folded Maps
Specifications:
Material Sizes
Minimum 2”W x 2"L (50mm x 50mm)
*Optional 1”x3” (25mm X 25mm)
Maximum 8"W x 12"L (203mm X 305mm)
*Wider and longer specs available
Material Thicknesses
.003" up to .031" (.08mm up to 13mm)
Dispensing Speed
0 to 8,500 IPM (variable)
Power Requirements
110V/220V 5amp
