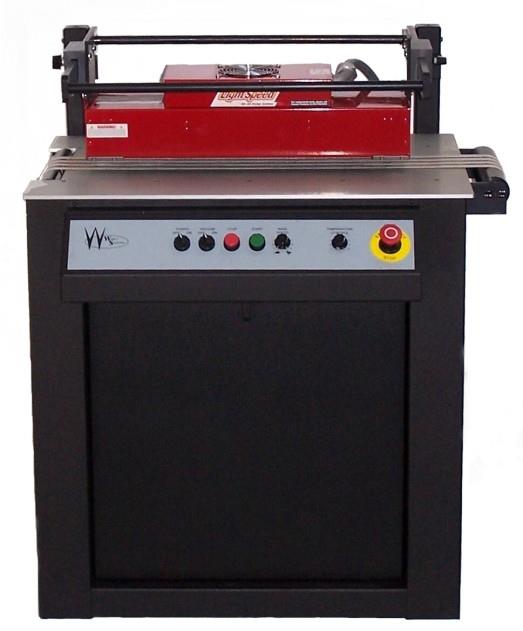

Walco Dryer Transport
Key Features:
Variable Speed Transport
Dryer Interlock
Integrated (Fannon) Temperature
Control
Product Hold Down Vacuum
Adjustable Heat Belts
12" Wide Transport Rollers
Heavy Duty Full Frame Construction
Upstream Interlock Sensor
240D - Dryer Transport
The compact 240D dryer vacuum transport base will accommodate dryers up to 16" long while offering a commercial grade platform perfect for upgrading from table top.
350D - Dryer Transport
The 350D dryer vacuum transport base can accommodate many different drying units up to ~24" long. This modular commercial grade base offers component level flexibility. In addition to the features on the 240D this transport offers Independent Vacuum Control.
Specifications: 240D
Transport Direction: Left or Right or Right to Left
Material Size: Min. 2"L x 3"W - Max Max 20" Wide
Material Thickness: Up To 1/2" Standard
Physical: 24"L x 23.5"W x 33-36" H
Electrical: 110 VAC Single Phase 10 Amp Circuit
Specifications: 350D
Transport Direction: Left or Right or Right to Left
Material Size: Min. 2"L x 3"W - Max 20" Wide
Material Thickness: Up To 1/2" Standard
Physical: 24"L x 23.5"W x 33-36" H
Electrical: 110 VAC Single Phase 10 Amp Circuit
